How to Wire FC-S02M without Your Company’s Access Control Power Supply
2016-12-07 17:37
Details of the problem:
I learned from the website that the FC-S02M access controller, how to connect without your company's access control power supply, can you draw a picture of the wiring? Thank you!
Expert answer:
Hello, there are currently two main wiring methods, you can refer to the following wiring diagram:

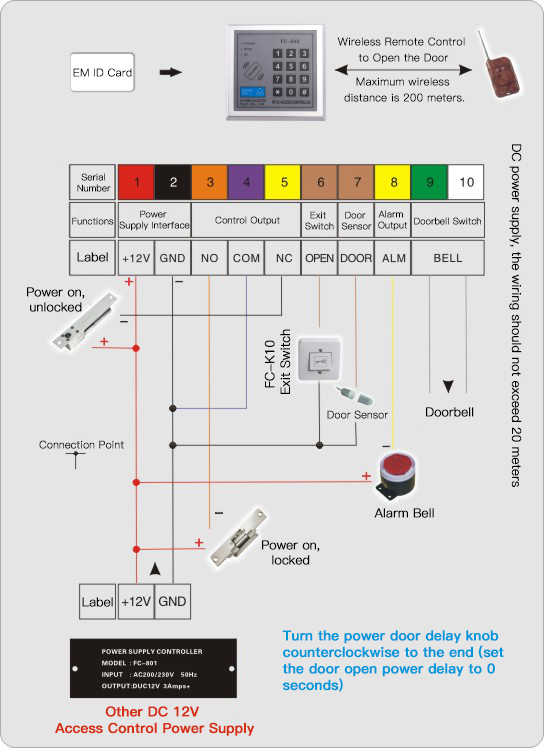

A. Standard access control power supply wiring method:

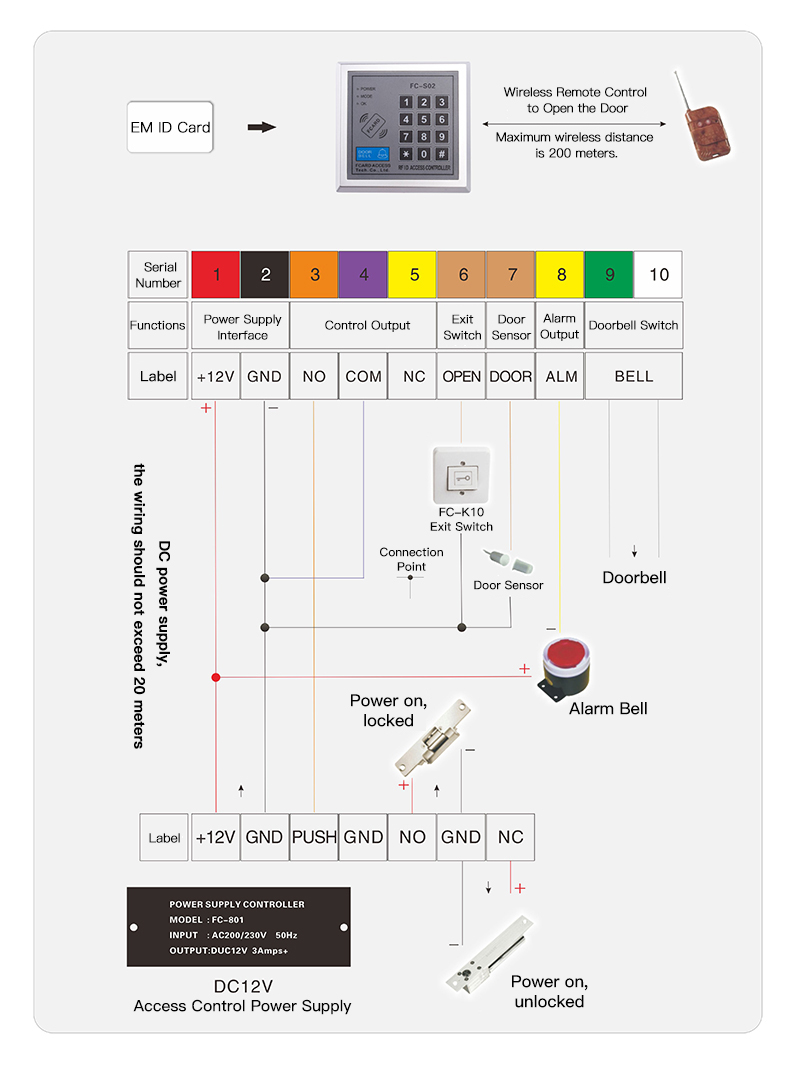

B. Standard access control power supply wiring method:
If you still don’t understand, you can consult us at any time and we will answer you in time.
